Motors
Drive motors for FLUX pumps. Also available with explosion protection for hazardous areas.
Products
Series and versions
Electric Motors
Commutator and brushless motors for the 300, 400, and VISCOPOWER series. Also available in explosion-proof versions.
view
Battery-powered motors
Cordless, portable drive for the 300, 400, and VISCOPOWER series
view
Three-phase motors
For continuous industrial operation at a constant speed
view
Compressed Air Motors
For Ex-rated areas – no electrical connection required
viewProducts
2 products
Motors
99.98% barrel and residual emptying
FBM 4000 Ex | 600 W | 230 V | 50-60 Hz
The low-wear drum pump motor with explosion protection, with speed setting, with undervoltage protection.
- Motor type:
- FBM 4000 Ex
- Rated output:
- 0.6 kW
- Supply voltage:
- 230 V
- Material:
- Aluminium
99.98% barrel and residual emptying
F 414 | 1100 W | 230/400 V | 50 Hz
Three-phase gear motor 1.1 kW for drum pumps, with terminal box.
- Motor type:
- three-phase motor
- Rated output:
- 1.1 kW
- Supply voltage:
- 230/400 V
99.98% barrel and residual emptying
FBM 4100
cordless battery motor for FLUX drum and container pumps.
- Motor type:
- Battery Motor FBM 4100 Core, FBM4100A
- Rated output:
- 0.26–0.42 kW
- Supply voltage:
- 2x18 V
- Material:
- polyamide
99.98% barrel and residual emptying
FEM 4070
The compact drum pump motor with undervoltage protection
- Motor type:
- FEM 4070
- Rated output:
- 0.5 kW
- Supply voltage:
- 230-240 V, 110 V, 120 V
- Material:
- polyamide
99.98% barrel and residual emptying
F 416 Ex
with spherical valve
- Motor type:
- F 416-2 Ex, F 416 Ex, F 416-1 Ex
- Rated output:
- 0.47 kW
Greater delivery heights
F 457 EL
The most powerful commutator motor, with speed setting, with undervoltage protection.
- Motor type:
- F 457 EL, F 457
- Rated output:
- 0.8 kW
- Supply voltage:
- 230-240 V
- Material:
- Polypropylene
Motors
F 457
The most powerful commutator motor, without undervoltage protection, 230-240 V / 50-60 Hz.
- Motor type:
- F 457
- Rated output:
- 0.8 kW
- Supply voltage:
- 230-240 V
- Material:
- Polypropylene
Motors
F 460-1 Ex
The robust drum pump motor with explosion protection, without undervoltage protection.
- Motor type:
- F 460-1 Ex
- Rated output:
- 0.7 kW
- Supply voltage:
- 230-240 V
- Material:
- Aluminium
Motors
FEM 3070
suitable for COMBIFLUX FP 314.
- Motor type:
- FEM 3070
- Rated output:
- 0.23 kW
- Supply voltage:
- 230-240 V, 120 V
- Material:
- polyamide
Greater delivery heights
F 458 EL
The robust drum pump motor with speed setting, with undervoltage protection
- Motor type:
- F 458 EL, F 458
- Rated output:
- 0.46 kW
- Supply voltage:
- 230-240 V
- Material:
- Aluminium
99.98% barrel and residual emptying
F 458-1
The robust drum pump motor without undervoltage protection
- Motor type:
- F 458-1
- Rated output:
- 0.7 kW
- Supply voltage:
- 230-240 V
- Material:
- Aluminium
99.98% barrel and residual emptying
F 460 Ex EL
The robust drum pump motor with explosion protection, with speed setting, with undervoltage protection.
- Motor type:
- F 460 Ex EL, F 460 Ex
- Rated output:
- 0.46 kW
- Supply voltage:
- 230-240 V
- Material:
- Aluminium
Motors
FBM-B 3100
suitable for COMBIFLUX FP 314, with charger.
- Motor type:
- FBM-B 3100 (brushless)
- Rated output:
- 0.1 kW
- Supply voltage:
- 18 V
- Material:
- polyamide
Overview
FLUX drive motors are part of a modular system: Depending on the application, various pumps from the 300, 400, and VISCOPOWER series can be combined with different motors. A pump’s flow rate depends, among other factors, on the power output of the selected motor.
Five motor types cover the entire range of requirements—from portable low-volume pumping to explosion-protected continuous operation.
For driving the FLUX pump a wide range of electrical to pneumatic motors is available. Even if you work in hazardous areas or with flammable liquids. Depending on the application, different pumps can be driven by different motors. Thus, the output of a drum pump depends, among other things, on the power of the motor. Here you will find the most economical and safest drive solution for your application.
Highlights
Five engine types
Commutator, brushless, three-phase, compressed air, rechargeable battery
Range of Services
100 W (battery) to 2,000 W (compressed air)
Compatible Series
300, 400, and VISCOPOWER – Motor and pump can be combined individually
Explosion Protection
Collector, brushless, and compressed air models available in explosion-proof versions
Advantages
Can be combined flexibly
Each motor is compatible with different pumps—a drive solution for a variety of applications.
Explosion-proof drives
Commutator, brushless, and pneumatic motors in ATEX-compliant designs—for Zone 1 and Zone 2.
Continuously variable speed control
Commutator motors with EL electronics and brushless motors – flow rate continuously adjustable.
Cordless, battery-powered operation
FBM-B 3100 for the 300 Series and FBM 4100 for the 400 Series, MINIFLUX, and VISCOPOWER – portable use without a power cord or compressed air.
Applications
Typical Applications and Areas of Use for FLUX Drive Motors
Universal Support
Brushless motors, 230–800 W, for the 300, 400, and VISCOPOWER series—flexible and lightweight.
Continuous Industrial Operation
Three-phase motors with constant speed – F 403, F 414, DSM for VISCOPOWER.
Compressed Air Operation
FPM and F 416 Ex – no electrical connection, intrinsically safe.
In practice

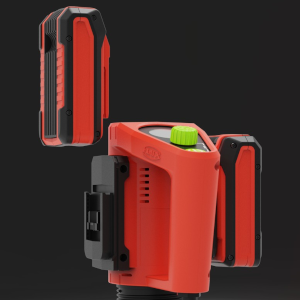

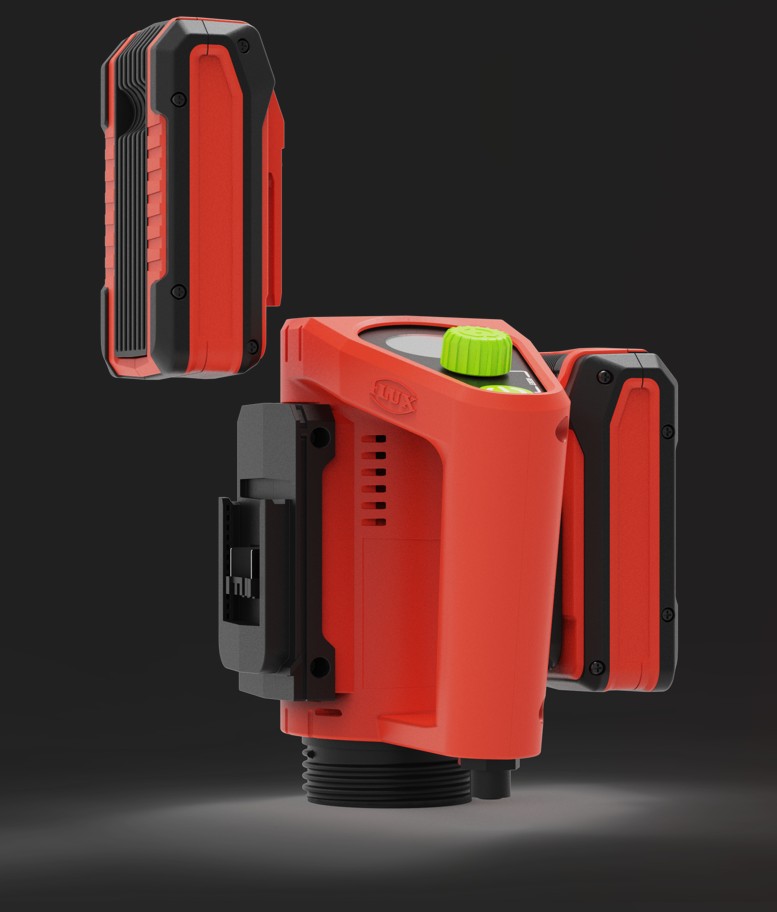

FBM 4100 Cordless Motor
Our most powerful battery-powered motor for barrel pumps, MINIFLUX, and VISCOPOWER. It combines long battery life, high flow rate, and smart features such as batch filling and dry-run protection.
Visit LandingpageTechnology
Function and Design of FLUX Motors
Every FLUX drum and container pump or eccentric screw pump requires a separate drive motor, which is connected to the pump shaft via a coupling. The choice of motor determines the pump’s speed, flow rate, and application range.
Five motor types are available
- Commutator motors offer the greatest flexibility in terms of voltage and power.
- Brushless motors operate without wear and are also suitable for hazardous areas.
- Three-phase motors deliver constant speeds for continuous industrial operation.
- Pneumatic motors require no electrical connection and are inherently explosion-proof.
- Battery-powered motors enable cordless, portable use.
Thanks to the modular design, the most cost-effective and safest drive solution can be configured for every application.
COMMUTATOR MOTORS
Lightweight, robust, and cost-effective to operate: FLUX collector motors are designed for reliable use with drum and container pumps.
- Lightweight and compact design
- Quiet operation
- Power ratings from 230 to 800 watts
- Robust housing for industrial use
- Ideal for mobile drum and container pumps
| Motor | Power | Speed | Series (pump) | Special Feature |
|---|---|---|---|---|
| FEM 3070 | 230 W | 2-stage | 300 | Compact, 1.5 kg |
| FEM 4070 | 500 W | Continuously variable | 400 | Polyamide housing, 2.6 kg |
| F 457 | 800 W | Optional continuously variable (EL) | 400, VISCOPOWER | PP housing, 4 kg |
| F 458 | 460–700 W | Optional stepless (EL) | 400, VISCOPOWER | IP 55, also 12/24 V DC |
| F 460 Ex | 460–700 W | Optional stepless (EL) | 400, VISCOPOWER | Ex db eb IIC T6/T5, aluminum |
BRUSHLESS MOTORS
FLUX brushless motors are designed for low-maintenance continuous operation and precise material handling applications.
- Maintenance-free drive without carbon brushes
- Low wear even at high switching frequencies
- Ideal for continuous operation and sensitive dosing applications
- Quiet operation, especially at low speeds
- Also flexible for short-term operation
Continuously variable speed control as standard. Explosion-proof in accordance with PTB 10 ATEX 1054 X.
| Model | Power | Speed | Series | Special Feature |
|---|---|---|---|---|
| FBM 4000 Ex | 600 W | 9,200 min, continuously variable | 400, VISCOPOWER | Ex db eb IIC T6/T5, aluminum |
THREE-PHASE MOTORS
FLUX three-phase motors are suitable for demanding conveying processes with high duty cycles and constant power requirements.
- Low-wear drive for continuous operation
- Constant speed even under load
- Designed for extreme operating conditions
- Conveying of highly viscous media up to 80,000 mPas
- High operational reliability in demanding applications
Voltage 230/400 V (standard) or 380–500 V/100 Hz (spur gear). Explosion protection for F 403 and DSM.
| Model | Capacity | Speed | Series | Special Feature |
|---|---|---|---|---|
| F 403 | 550 W | Selectable: 2,850 min or 1,450 min | 400, VISCOPOWER | Ex e II T3/T4, 8 kg |
| F 414 | 550 W, 750 W, 1,100 W | Constant speed | 400, VISCOPOWER | Up to 1,100 W, 8.8–12.8 kg |
| DSM | 750–1,100 W | 750 or 1,000 min | 400, VISCOPOWER | Ex e II T3/T4, constant |
| Spur gear | 800–1,100 W | 47–472 min | 400, VISCOPOWER | Spur gear, 100 Hz |
COMPRESSED AIR MOTORS
FLUX air motors are designed for safe use in hazardous areas and with flammable media.
- Powerful drive for demanding applications
- Suitable for highly flammable liquids
- Ideal for hazardous areas
- Lightweight and easy to handle for mobile use
- Speed can be adjusted easily and precisely
- Robustly built for everyday industrial use
Speed adjustment via operating pressure or air flow. For potentially explosive atmospheres without electrical installations.
| Model | Power | Pressure | Series | Special Feature |
|---|---|---|---|---|
| FPM | 600–2,000 W | 6 bar | 400, VISCOPOWER | Protection Class: IP 55Ex: II 2 G c T5 |
| F 416 Ex | 470 W | 6 bar | 400, VISCOPOWER | Ex: II G IIC T6, only 0.9–1.4 kg |
BATTERY-POWERED MOTORS
FLUX battery-powered motors enable off-grid material handling wherever flexibility and mobile operation are required.
- Off-grid operation—even outdoors
- Batch filling for repeatable dosing
- Brushless and maintenance-free
- Can be used worldwide thanks to battery operation
For mobile drum and IBC applications with FLUX 400 Series pump units and VISCOPOWER F 570.
| MODEL | POWER | SPEED | SERIES | SPECIAL FEATURE |
|---|---|---|---|---|
| FBM-B 3100 | 100 W | Continuously variable | 300, JUNIORFLUX, COMBIFLUX | Brushless, IP44, only 1.2 kg |
| FBM 4100 | 420 W (ventilated) 260 W (enclosed) | 5,500–12,250 rpm, adjustable in10 steps | 400, VISCOPOWER | Brushless, LCD display, LED light, IP24/IP44, 2.8 kg, batch filling with filling profiles, dry-run protection |
Compare
| FEATURE | BRUSH MOTOR | BRUSHLESS MOTOR | THREE-PHASE MOTOR | AIR MOTOR | BATTERY MOTOR |
|---|---|---|---|---|---|
| Power | 230–800 W | 600 W | 550–1,100 W | 470–2,000 W | 100–420 W |
| Speed | 6,000–9,500 rpm | 9,200 rpm | 700–930 rpm | Variable | 5,500–12,250 rpm |
| Speed Control | Optional (EL) | ✓ Infinitely variable | – | Via air supply | Variable |
| Explosion Protection | ✓ (F 460 Ex) | ✓ (FBM 4000 Ex) | ✓ (F 403, DSM) | ✓ (inherently safe) | – |
| Weight | 1.5–5.9 kg | 6.2 kg | 8–23 kg | 0.9–10 kg | 1.2–2.8 kg |
| Product Series(compatible pumps) | 300, 400, VISCOPOWER | 400, VISCOPOWER | 400, VISCOPOWER | 400, VISCOPOWER | 300, 400, VISCOPOWER |
| Ideal for | Universal, flexible use | Maintenance-free operation, Ex applications | High pressure, industrial applications |
Downloads
Documentation for planning, operation and maintenance.
Operating Instructions
Operating instructions for all FLUX motors.
Download per product
Data Sheets
Technical specifications, dimensions, and performance data for all FLUX pumps and motors.
Download per product
Performance Curves
Flow rate, head, and performance curves for precise motor and pump selection.
Download per product
Dimension Sheets
Dimensions and installation dimensions for technical planning and design.
Download per product
Certificates & Evidence
Declarations of conformity, ATEX/IECEx certificates, as well as ISO, REACH, and other certifications.
Download per product
Brochures
Product brochures and company information to browse and download.
Download
FAQ
Does altitude affect the performance of pumps and motors (e.g., at altitudes of 2,000–4,000 m)?
Yes. At altitudes of 2,000 meters or higher, pump performance decreases measurably. At 3,000 meters, the loss in performance is approximately 15%; at 4,000 meters, it is about 25%. This is caused by lower air pressure, which reduces cooling and engine performance.
Details:
- 0–1,000 m: Performance remains constant
- 2,000 m: approx. –5% performance
- 3,000 m: approx. –15% performance
- 4,000 m: approx. –25% performance
For operation at high altitudes, we therefore recommend a motor with correspondingly higher power.
Solutions for altitudes >2000 m:
- F 457 motor (800 watts)—commutator motor with high power reserve.
- VISCOPOWER eccentric screw pumps with three-phase motor (up to 1,100 watts)—for high-viscosity fluids at higher altitudes.
Is a ground cable required when operating a FLUX Ex motor with a plastic pump for non-flammable liquids?
No. Since there is no conductive connection to the pump, a ground wire is not required when using an FLUX Ex motor with a plastic pump for non-flammable liquids.
Why are FLUX Ex motors shipped with standard connectors as standard equipment rather than with Ex connectors?
FLUX Ex motors are shipped with a standard plug as standard, since the outlet is typically located outside the Ex area (ATEX zone). Ex plugs and matching Ex outlets are available upon request.
Details:
- The operator is responsible for defining the Ex area (ATEX).
- Standard equipment: 5 m power cord with standard plug, not explosion-proof.
- Optional: Ex-rated plugs and Ex-rated receptacles are available; many operators use their own systems.
- Cable configurations depending on the motor’s protection class:
-- Protection Class I (metal housing): 3-wire, 3 × 1.5 mm² with protective conductor. -- Protection Class II (plastic housing): 2-wire with protective insulation. --- Protection Class III (low voltage ≤ 42 V): max. 5 m cable length (2 × 4 mm²) due to line losses.
- Safety: There is an information label on the cable. The plug must not be plugged into an Ex zone.
