F 430 PVDF-40/33
for pumping concentrated acids out of IBCs.
- Item no.
- 10-45860012
- EAN
- 4260387213219
- Motor type
- F 458
- Max. flow rate
- 40 l/min
- Max. discharge head
- 9.5 mWk
- Rated output
- 0.46 kW
- Supply voltage
- 230-240 V
- Material
- Polyvinylidene fluoride
Immersion length
- 1000 mm
- 1200 mm
Overview
Fully-prepared pump set comprising F 430 drum pump (immersion length 1200 mm) with mechanical seal, polyvinylidene fluoride outer tube, F 458 commutator motor, hose line, pump nozzle and compression gland. The pump can be quickly dismantled into two parts without any tools. The inner tube with steel core prevents the length from changing as the temperature fluctuates. The robust motor with aluminium housing and paintwork protected against acids is fully enclosed.
Benefits
- Easy to disassemble
- Universal and flexible use
- Easy to clean because medium cannot get into the inner tube
- Medium is not dispersed so the pump can be used for different media
Technical data
Performance
- Max. flow rate
- 40 l/min
- Max. discharge head
- 9.5 mWk
- Max. viscosity
- 600 mPas
- Suction side
- without
Electrical
- Cooling
- external ventilated
- Rated output
- 0.46 kW
- Protection class
- IP 55
- Speed control
- no
- Supply voltage
- 230-240 V
- Motor type
- F 458
- Cable length
- 5,00 m
- Frequency
- 50-60 Hz
- Type plug
- CEE 7/7-plug
- Undervoltage prot.
- yes
Materials and sealing
- Material impeller
- ethylene tetrafluoroethylene
- Seal material
- FKM
- Material
- Polyvinylidene fluoride
- Material shaft
- Hastelloy C
- Mechanical seal
- PTFE/carbon, oxide ceramics, HC, FKM
- Type hose line
- food / chemistry hose
Dimensions and weight
- Weight
- 9.41 kg
- Immersion length
- 1,200 mm
- Outer diameter
- 31 mm
- Hose length from
- 2,0 m
- Nominal diameter
- DN 19 mm
Approvals
- For use in hazardous areas
- No
- FDA approval
- no
- Food approval
- no
Other
- Drum pump type
- F 430
- Ø outlet spout
- 25 mm
Set components
Hand Nozzles
Materials and sealing
- Inliner
- yes
- Material inside
- ultra-high-molecular-weight white PE
Other
- Swivelling
- yes
- Base part
- 40 mm
- Shaft bearing
- slide bearing - not in contact with the medium
- Dry installation
- no
Compare the versions
Only the properties that differ are shown.
| Property | F 430 PVDF-40/33 | F 430 PVDF-40/33This page |
|---|---|---|
| Item no. | 10-45860010 | 10-45860012 |
| Immersion length | 1,000 mm | 1,200 mm |
| Weight | 9.11 kg | 9.41 kg |
Media
This product is suitable for 182 media. The list is a guide for common applications.
A
- Ammonium nitrate10% · 20-40 °C
- Ammonium nitrate50% · 20-40 °C
- Ammonium phosphate10% · 20-40 °C
- Ammonium sulphate10% · 20 °C
- Ammonium sulphate10% · 40 °C
- Arsenic acid10% · 20-40 °C
- Arsenic acid80% · 20-40 °C
B
- Battery acid40% · 20-40 °C
- Benzaldehyde100% · 20 °C
- Benzoic aldehyde30% · 20 °C
- Bicarbonate of soda10% · 20 °C
- Bicarbonate of soda10% · 40 °C
- Bleach10% · 20 °C
- Bleach20% · 20 °C
- Bleach, 12%5% · 20 °C
- Bleaching solution10% · 20 °C
- Bleaching solution20% · 20 °C
- Bleaching solution, 12%5% · 20 °C
- Borax10% · 20-40 °C
- Borax100% · 20-40 °C
- Boric acid10% · 20-40 °C
- Boric acid100% · 20-40 °C
- Butanedioic acid50% · 20-40 °C
- Butylene glycol10% · 20-40 °C
Is your medium not listed? Other media are often possible too. Request a quote and we will advise you personally.
Downloads
Data sheets
Declarations of conformity
Drawings and diagrams
Inquiry forms
Accessories and related
Accessories
Pump bracket
for drum and container pumps.
- Material:
- Stainless steel
Accessories

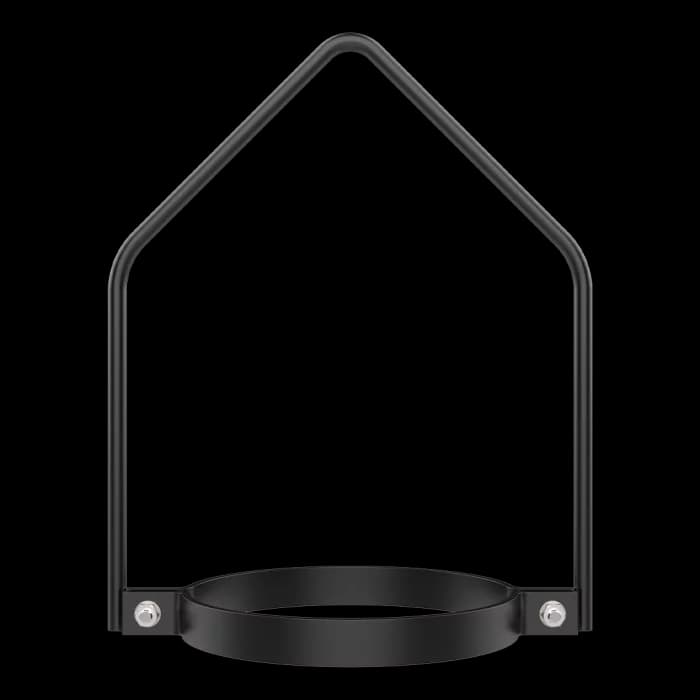

Retaining bracket
for F 458 and F 458-1 commutator motors.
- Material:
- steel
Accessories

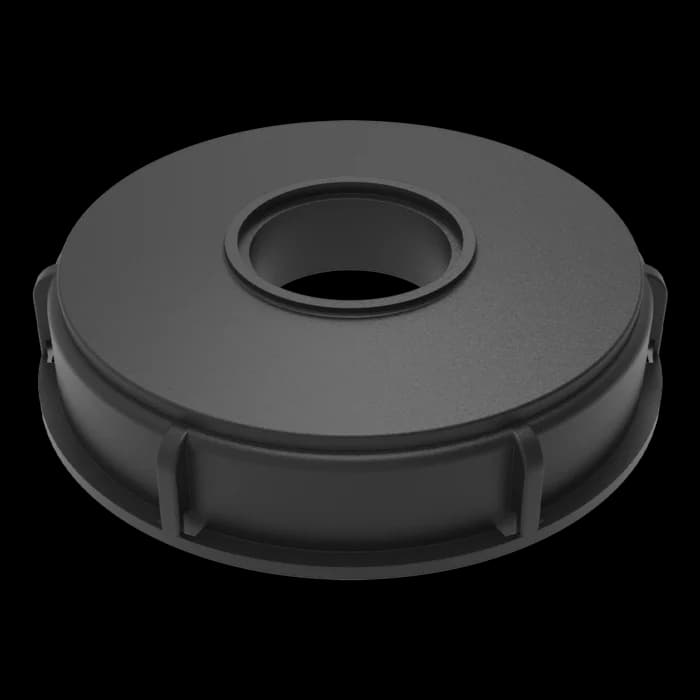

Screw cap
