F 427 S4-43/38 | Rd 58x1/6
for hygiene applications. For pumping out of canisters. Made from stainless steel, Rd 58x1/6 pressure connector.
- Item no.
- 10-42720407
- Max. flow rate
- 240 l/min
- Max. discharge head
- 13 mWk
- Material
- Stainless steel
Overview
The stainless steel F 427 drum pump, which has no seals in the liquid area, is the ideal drum pump for hygiene applications and is suited to pumping out of canisters & hobbocks (immersion length 700 mm). It is quick and easy to disassemble for cleaning and/or sterilisation and can be fully dismantled into all its individual parts virtually without the need for tools. The drum pump is designed with minimal dead space. The outer and inner tube of the drum pump and the shaft are made from stainless steel (1.4571 and/or 1.4581). If necessary, it can be combined with different motors.
Benefits
- Ideal as hygiene pump
- Can be dismantled into its individual parts quickly and easily for cleaning
- All parts that come into contact with the medium can be sterilised
- Also pumps fluids containing solids, such as juices containing pulp or spicy soups
Technical data
Performance
- Max. flow rate
- 240 l/min
- Max. discharge head
- 13 mWk
- Max. viscosity
- 1,000 mPas
Materials and sealing
- Material impeller
- ethylene tetrafluoroethylene
- Seal material
- FKM
- Material
- Stainless steel
- Material shaft
- stainless steel
- mechanical seal
- without
Dimensions and weight
- Weight
- 2.2 kg
- Connection outlet
- External thread Rd 58 x 1/6"
- Outer diameter
- 41,00 mm
- Immersion length
- 700 mm
Approvals
- 3-A version
- No
- For use in hazardous areas
- No
- FDA approval
- no
- Food approval
- no
- Ex-marking
- without
Other
- Type impeller
- axial impeller 38 for higher delivery rate
- Drum pump type
- F 427
Compare the versions
Only the properties that differ are shown.
| Property | F 427 S4-43/38 | Rd 58x1/6This page | F 427 S4-43/38 | Rd 58x1/6 | F 427 S4-43/38 | Rd 58x1/6 |
|---|---|---|---|
| Item no. | 10-42720407 | 10-42720410 | 10-42720412 |
| Immersion length | 700 mm | 1,000 mm | 1,200 mm |
| Weight | 2.2 kg | 2.9 kg | 3.3 kg |
Media
This product is suitable for 166 media. The list is a guide for common applications.
A
- Ammonium nitrate10% · 20-40 °C
- Ammonium nitrate50% · 20-40 °C
- Ammonium phosphate10% · 20-40 °C
- Ammonium sulphate10% · 20 °C
- Ammonium sulphate10% · 40 °C
- Amyl alcohol100% · 20 °C
- Amyl alcohol100% · 40 °C
- Arsenic acid10% · 20-40 °C
- Arsenic acid80% · 20-40 °C
B
- Benzaldehyde100% · 20 °C
- Benzaldehyde100% · 40 °C
- Benzine100% · 20 °C
- Benzine100% · 40 °C
- Benzoic aldehyde30% · 20 °C
- Benzole100% · 20 °C
- Bicarbonate of soda10% · 20 °C
- Bicarbonate of soda10% · 40 °C
- Borax10% · 20-40 °C
- Borax100% · 20-40 °C
- Boric acid10% · 20-40 °C
- Boric acid100% · 20-40 °C
- Butanedioic acid50% · 20-40 °C
- Butanol100% · 20 °C
- Butyl alcohol100% · 20 °C
Is your medium not listed? Other media are often possible too. Request a quote and we will advise you personally.
Downloads
Data sheets
Declarations of conformity
Drawings and diagrams
Inquiry forms
Other documents
Accessories and related
Accessories
Pump bracket
for drum and container pumps.
- Material:
- Stainless steel
Accessories
Compression gland
PP conductive, for pumps of 40/ 41 mm in diameter, R 2 connection.
- Material:
- polypropylene conductive
Accessories

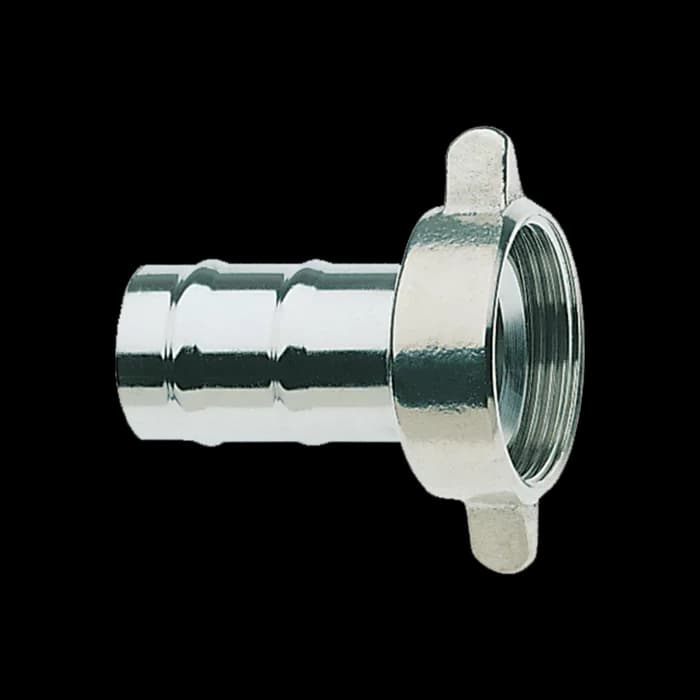

Hose connection cpl. SDN 25, Rd 58x1/6
