ATEX
FDA
FOOD
- Material
- Stainless steel
Overview
Stainless steel material 1.4404, FKM seal, 1 ½" clamp connection, DN 40. Accessories for drum and container pump of the F 400 series. For contact with food in accordance with (EC) No. 1935/2004. Without hinged clamp 10-43021019, without seal (EPDM 10-92569017 / NBR 10-92569015/ FKM 10-92569014/ PTFE 10-92569016).
Technical data
Performance
- Suction side
- Clamp 1 1/2"
Materials and sealing
- Seal material
- FKM
- Material
- Stainless steel
Dimensions and weight
- Weight
- 1.51 kg
- Connection outlet
- clamp 1 1/2"
- Nominal diameter
- DN 40 mm
Approvals
- For use in hazardous areas
- Yes
- FDA approval
- CFR 21
- Food approval
- EC 1935/2004
Other
- Accessory type
- Diaphragm valve
- clamp
- without
- other flap valve
- without
Media
This product is suitable for 166 media. The list is a guide for common applications.
A
- Ammonium nitrate10% · 20-40 °C
- Ammonium nitrate50% · 20-40 °C
- Ammonium phosphate10% · 20-40 °C
- Ammonium sulphate10% · 20 °C
- Ammonium sulphate10% · 40 °C
- Amyl alcohol100% · 20 °C
- Amyl alcohol100% · 40 °C
- Arsenic acid10% · 20-40 °C
- Arsenic acid80% · 20-40 °C
B
- Benzaldehyde100% · 20 °C
- Benzaldehyde100% · 40 °C
- Benzine100% · 20 °C
- Benzine100% · 40 °C
- Benzoic aldehyde30% · 20 °C
- Benzole100% · 20 °C
- Bicarbonate of soda10% · 20 °C
- Bicarbonate of soda10% · 40 °C
- Borax10% · 20-40 °C
- Borax100% · 20-40 °C
- Boric acid10% · 20-40 °C
- Boric acid100% · 20-40 °C
- Butanedioic acid50% · 20-40 °C
- Butanol100% · 20 °C
- Butyl alcohol100% · 20 °C
Is your medium not listed? Other media are often possible too. Request a quote and we will advise you personally.
Accessories and related
Accessories
Gelenkklemme
für Clamp 1 ½“.
- Material:
- Stainless steel
Accessories

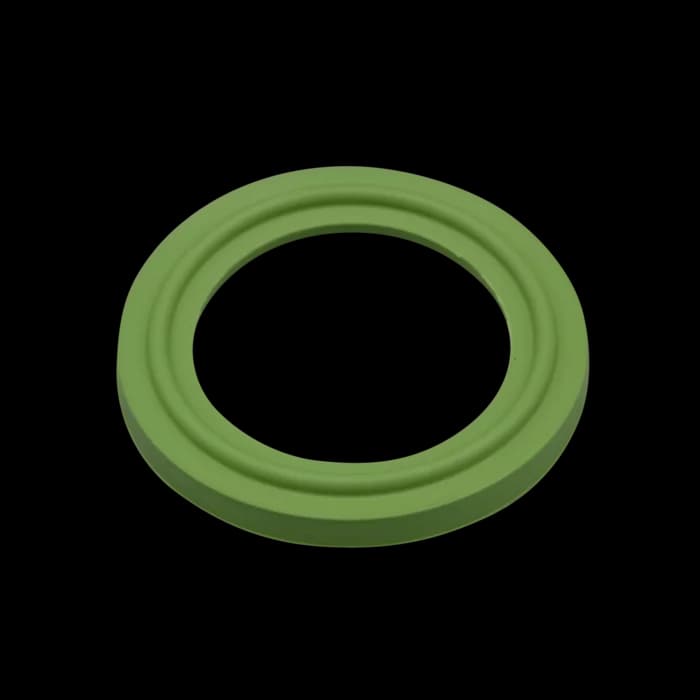

Dichtung FKM Clamp 1 1/2
