Base strainer
made from stainless steel, for pumps of 43 mm in diameter.
- Item no.
- 10-00110294
ATEX
- Material
- Stainless steel
Overview
For protection against coarser impurities. Easy to fit - simply place on pump’s outer tube. (for FP 424 Ex S-43/38 and -43/37Z), outer diameter 53 mm.
Technical data
Materials and sealing
- Material
- Stainless steel
- material seal
- without
Dimensions and weight
- Weight
- 0.14 kg
- Outer diameter
- 53,00 mm
- Inner diameter
- 43 mm
- Length
- 58 mm
Approvals
- For use in hazardous areas
- Yes
Other
- Accessory type
- Suction strainer
- other suc. strainer
- without
Media
This product is suitable for 247 media. The list is a guide for common applications.
A
- Acetic acid10% · 20 °C
- Acetic acid10% · 40 °C
- Acetic acid25% · 20 °C
- Acetic acid25% · 40 °C
- Acetic acid50% · 20 °C
- Acetone10% · 20 °C
- Acetone10% · 40 °C
- Acetone100% · 20 °C
- Acetone100% · 40 °C
- Allyl alcohol96% · 20 °C
- Allyl alcohol96% · 40 °C
- Ammonia solution100% · 20 °C
- Ammonia solution100% · 40 °C
- Ammonium nitrate10% · 20-40 °C
- Ammonium nitrate50% · 20-40 °C
- Ammonium phosphate10% · 20-40 °C
- Ammonium sulphate10% · 20 °C
- Ammonium sulphate10% · 40 °C
- Amyl acetate100% · 20 °C
- Amyl acetate100% · 40 °C
- Amyl alcohol100% · 20 °C
- Amyl alcohol100% · 40 °C
- Arsenic acid10% · 20-40 °C
- Arsenic acid80% · 20-40 °C
Is your medium not listed? Other media are often possible too. Request a quote and we will advise you personally.
Similar products
Accessories

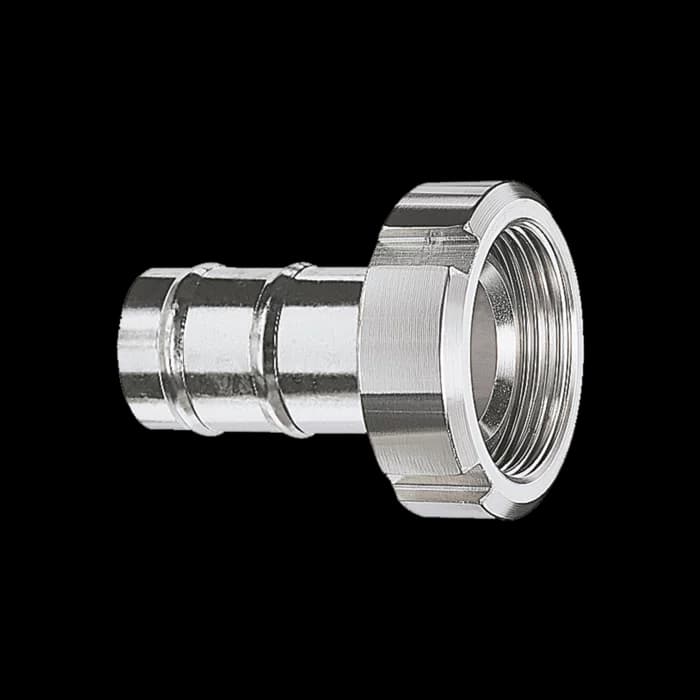

SAS-S DN 32 - G 1 1/4
stainless steel (1.4571), DN 32, grooved union nut G 1 1/4.
View product
Accessories

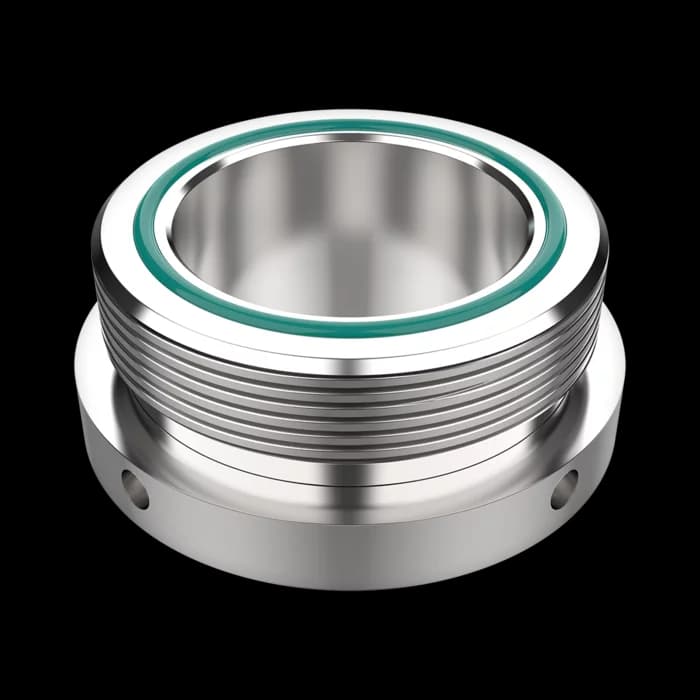

Threaded ring for fume gland
for pumps of 50 mm in diameter, S, G 2 B male thread.
- Material:
- Stainless steel
Accessories
Hose connection cpl. SDN 38, Clamp 2
View product
Accessories

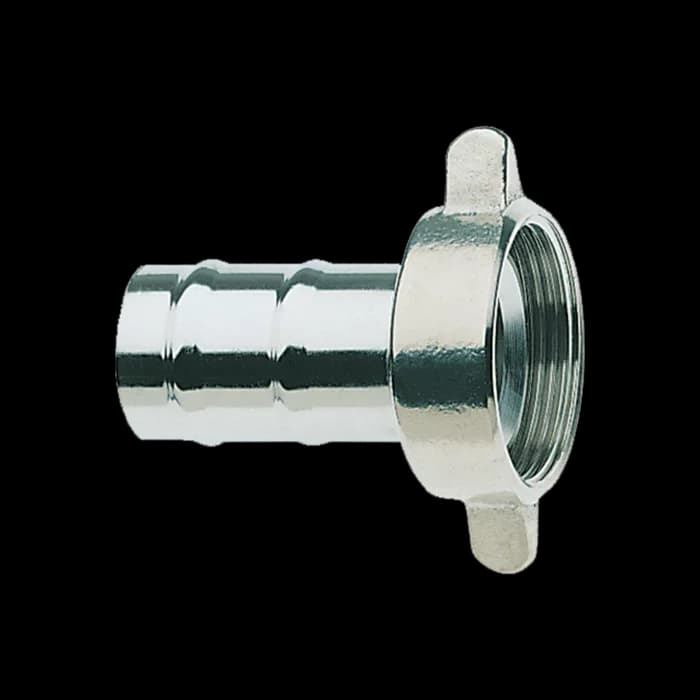

Hose connection SDN 19, G 1 1/4
View product
Accessories

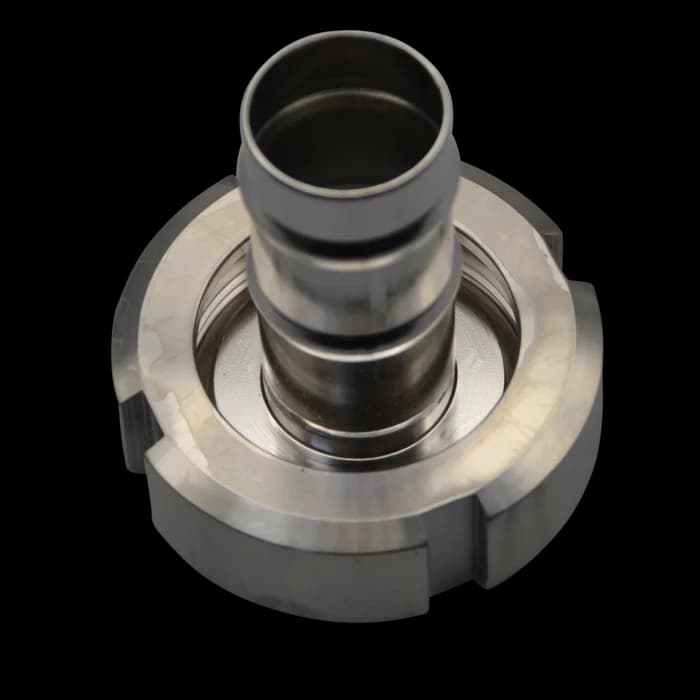

hose connection S, DN 25with union nut (304) G 1 1/2
View product
Accessories

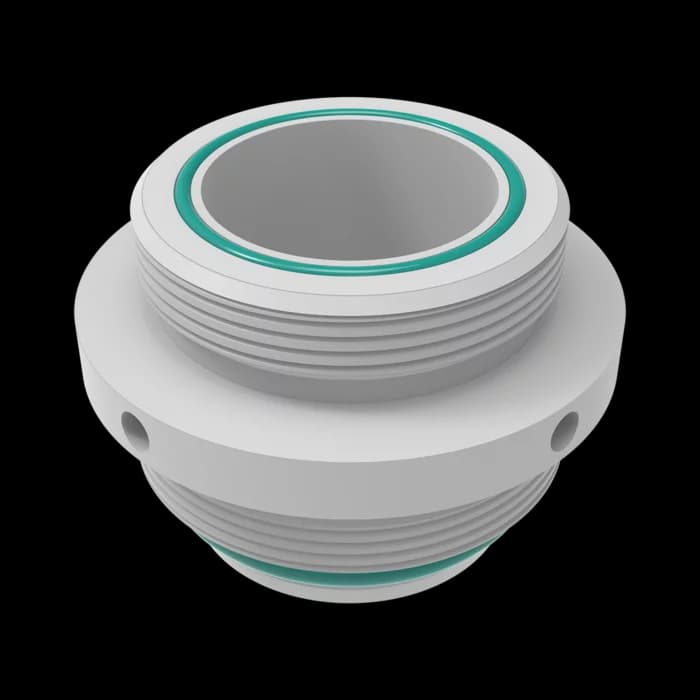

Threaded ring for fume gland
for pumps of 25/32/40/41 mm in diameter, PP, BCS 70 x 6 male thread.
- Material:
- Polypropylene
Accessories

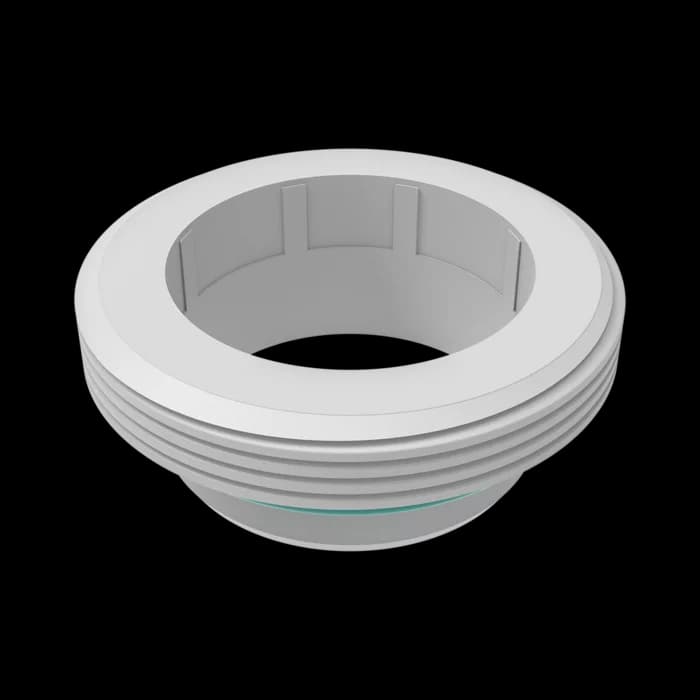

Compression gland
PE, for pumps of 41 mm in diameter, 57 x 4 connection.
- Material:
- polyethylene
Accessories

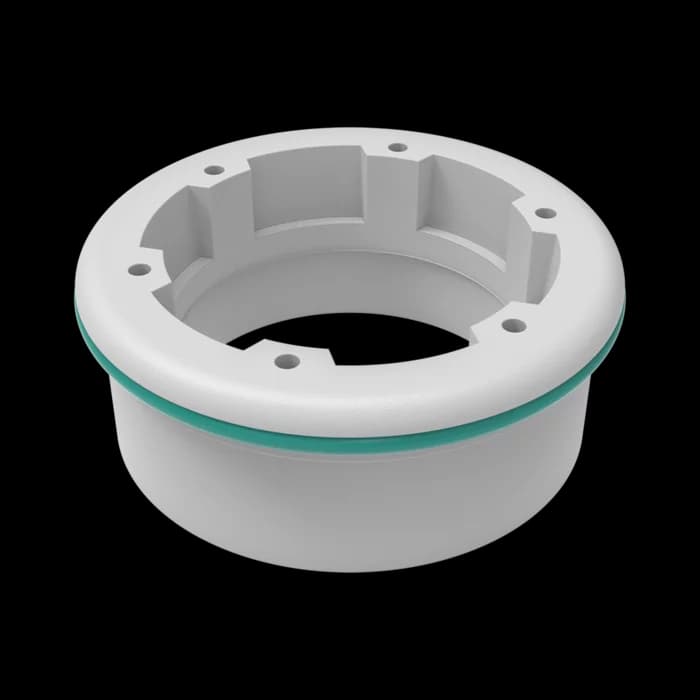

Compression gland
