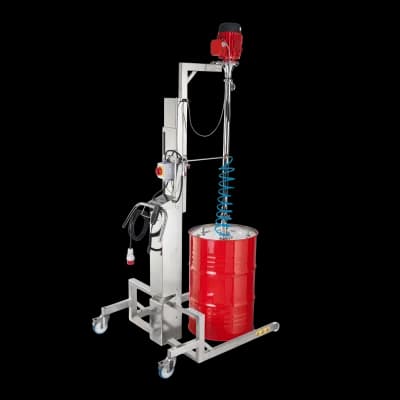

VISCOFLUX mobile S
The VISCOFLUX mobile S drum emptying system transfers highly viscous, pasty and non-free-flowing media from drums. The mobile process unit is suitable for hygienic applications in food, pharma and cosmetics. It also efficiently and gently empties conical drums, cardboard drums and sea container drums with aseptic bag.
Vergelijk
| Feature | Specification |
|---|---|
| Delivery pressure | max. 15 bar |
| Viscosity | up to 500,000 mPas |
| Fluids | High-viscosity media that are just barely flowable, non-self-flowing media |
| Process unit | Battery-powered, made entirely of stainless steel, IP 66, load capacity up to 100 kg, chassis available in two standard sizes |
| For drum diameters | 560 mm or 571 mm |
| For conical drums | 550 mm at the top, 515 mm at the bottom |
| For drums with a small opening | Ø 540 mm at the top, Ø 571 mm at the bottom |
| Pumps | Ø 53 mm, lengths 1,000 mm and 1,200 mm |
| Pump type | VISCOPOWER F 580 |
| Versions | Also available in food-grade versions, compliant with EC 1935/2004 and FDA CFR 21 |
| Motors | Three-phase motors starting at 0.75 kW, helical gearmotors, air motors |
| Process seal | NBR compliant with EC 1935/2004, FDA-compliant, or FKM |
| Power supply | For motor or control box |
| Fittings | Ball valves for compressed air supply and venting |
