Toepassingen
Tomato paste
Example value: approx. 50 l/min with a motor protection switch.
Caramel Paste
Depending on the configuration, flow rates of up to 70 l/min are possible.
Creams and Pastes
Low speeds for gentle handling.
Drums with liners
Small residual quantities, even with aseptic bags.
Promote 3x concentrated tomato paste
Configuration with Motor Protection Switch
Dispense caramel paste
Configuration with a variable-frequency drive
Techniek

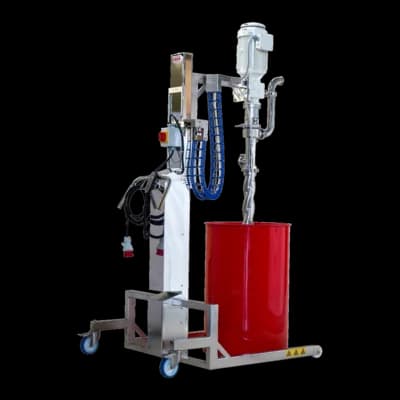

VISCOFLUX mobile HF
VISCOFLUX mobile HF delivers maximum flow rates of up to 70 l/min for highly viscous and paste-like media in drums. For hygienic processes in the food, pharmaceutical, and cosmetics industries.
Motor protection switch: Simple on/off control, approx. 50 l/min*
The motor protection switch is used to switch the motor on and off at a fixed motor speed.
- Direct and simple operation at the system
- Fixed motor speed
- Suitable for applications requiring a constant flow rate
- Protection and isolation via the main switch
Frequency converter: Variable speed control, approx. 70 l/min*
The frequency inverter enables the motor to be started and stopped and its speed to be adjusted to suit the fluid and process.
- Infinitely variable motor speed adjustment
- Start and stop directly from the control panel
- Can be combined with an optional limit switch
- External start/stop function available for automated processes
Vergelijk
| Flow Rate | Approx. 50 l/min; up to 70 l/min with a variable-frequency drive—depending on the fluid and configuration |
|---|---|
| Suitable Fluids | High-viscosity and paste-like media; specific suitability based on individual design |
| Residual quantity | Less than 1%; less than 2% for drums with aseptic bags or liners |
| Drum sizes | Cylindrical: Ø 560 or 571.5 mm; conical: Ø 550 mm at top / 515 mm at bottom; small opening: Ø 545 mm at top / 571.5 mm at bottom; each available with or without an inliner |
| Chassis | 890 mm interior width; approx. 970 mm total width |
| Height | approx. 1.98 m when retracted; max. 2.707 m with standard motor or 2.805 m with stainless steel motor |
| Weight | Approx. 203 kg in the example configuration, including process unit, pump, outlet plate, gear motor, hose, and outlet elbow |
| Lifting capacity | 100 kg |
| Ambient temperature | +5 to +40 °C |
