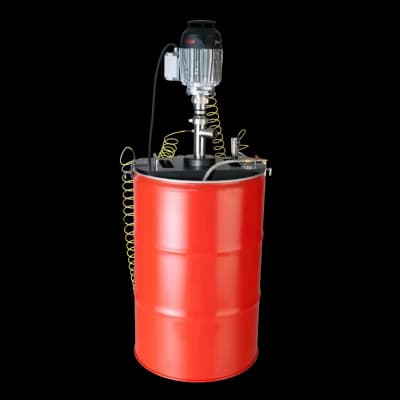

VISCOFLUX Lite Ex
The VISCOFLUX lite Ex drum emptying system is designed for transferring highly viscous, just-flowable media in hazardous areas. It is suitable for handling flammable liquids in Zone 0/1 and for use in Zone 1 hazardous environments.
The progressive cavity pump ensures gentle and continuous transfer of the medium. Residual product remaining in the drum is less than 1%.
Vergelijk
| Feature | Specification |
|---|---|
| Flow Rate | max. 50 l/min |
| Delivery pressure | max. 8 bar |
| Viscosity | up to max. 500,000 mPas |
| Fluids | High-viscosity media that are still just flowable |
| Application range | Ex Zone |
| Ex Zones | Zone 1, media in Zone 0/1 |
| Containers | ISO lidded drums |
| Inner diameter of drum | 571.5 mm |
| Residual quantity in the drum | < 1% |
| Pump type | Eccentric screw pump |
| Delivery | Gentle on the material, low turbulence, low pulsation |
| Design | Pump and motor can be individually combined |
