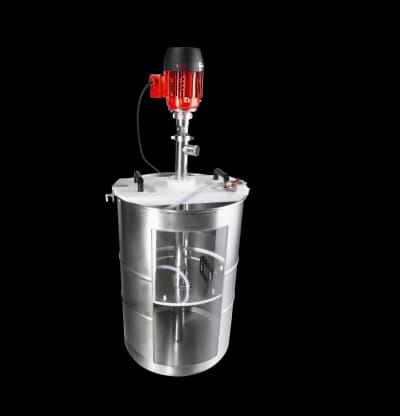

VISCOFLUX Lite
The VISCOFLUX Lite drum emptying system conveys higher-viscosity media that are barely flowable from ISO lidded drums. The eccentric screw pump operates gently, continuously, and with minimal pulsation. The sealing plate creates an airtight seal around the medium and reduces the residual volume in the drum to less than 1%.
Vergelijk
| Feature | Specification |
|---|---|
| Flow Rate | max. 50 l/min |
| Delivery pressure | max. 8 bar |
| Viscosity | up to max. 500,000 mPas |
| Fluids | High-viscosity media that are still just flowable |
| Containers | ISO lidded drums |
| Drum inner diameter | 571.5 mm |
| Residual quantity in the drum | < 1% |
| Pump type | Eccentric screw pump |
| Delivery | Gentle on the material, low turbulence, low pulsation |
| Design | Pump and motor can be individually combined |
| Application | Mobile |
Downloads
Documentatie voor planning, gebruik en onderhoud.
Operating Instructions
Operating instructions for all FLUX drum emptying systems.
DownloadData Sheets
Technical specifications, dimensions, and performance data for all FLUX pumps and motors.
DownloadPerformance Curves
Flow rate, head, and performance curves for precise pump selection.
DownloadDimension Sheets
Dimensions and installation dimensions for technical planning and design.
DownloadCertificates & Evidence
Declarations of conformity, ATEX/IECEx certificates, as well as ISO, REACH, and other certifications.
DownloadBrochures
Product brochures and company information to browse and download.
Download
